HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Heater Vent Duct

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Disconnect the battery ground cable and wait for at least 60 seconds before starting work. NOTE">

2. Remove the instrument panel assembly. Instrument Panel Assembly > REMOVAL">

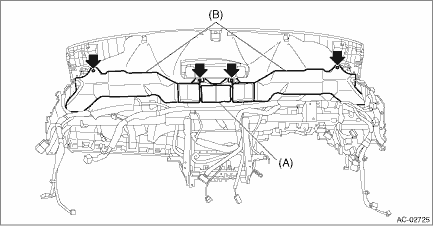

3. Remove the screws and remove the duct - center vent (A) and the duct - side ventilation (B) on LH and RH sides.
