Subaru Crosstrek Service Manual: Navigation system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Navigation system Wiring diagram

WIRING SYSTEM > Navigation System

WIRING DIAGRAM

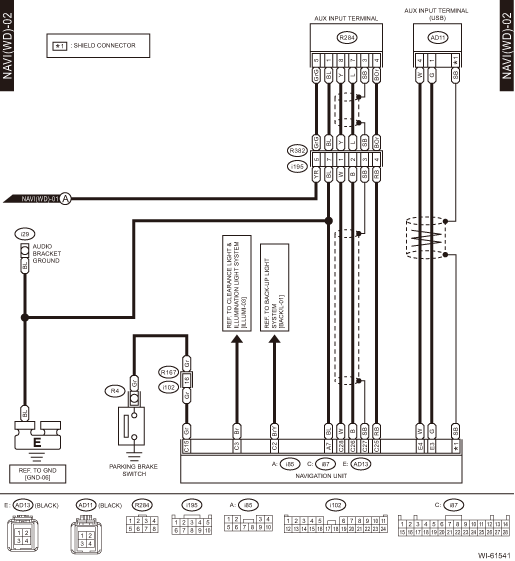

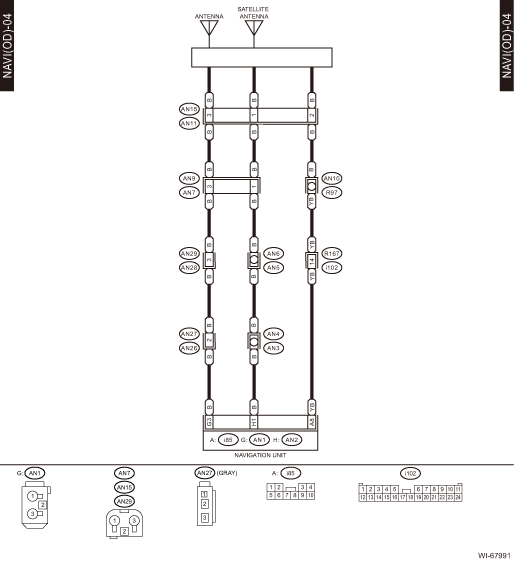

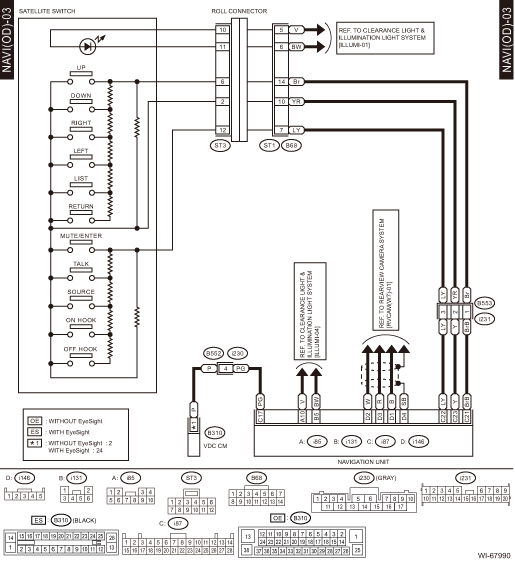

1. WITHOUT TELEMATICS

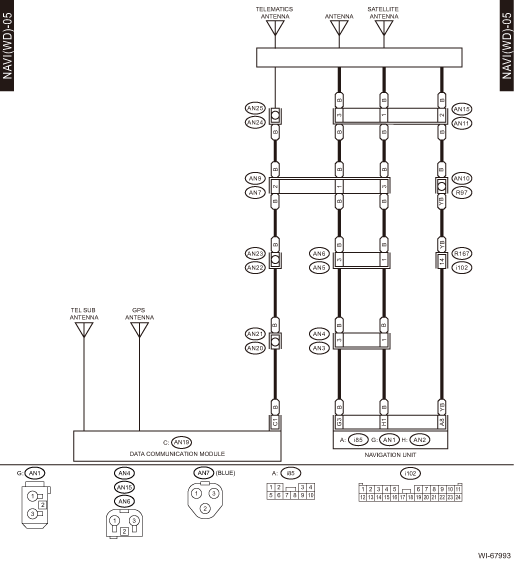

2. WITH TELEMATICS
