Subaru Crosstrek Service Manual: Removal

VEHICLE DYNAMICS CONTROL (VDC) > Rear ABS Wheel Speed Sensor

REMOVAL

1. 5 DOOR MODEL

1. Disconnect the ground cable from battery.

2. Lift up the vehicle, and then remove the rear wheels.

3. Remove the rear ABS wheel speed sensor.

CAUTION:

Be careful not to damage the sensor.

Do not apply excessive force to the sensor harness.

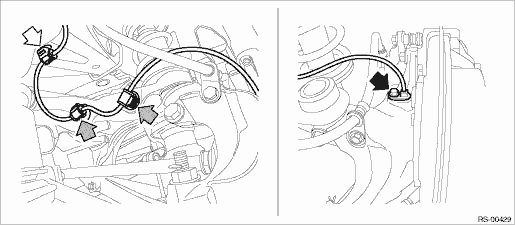

Leave the sensor harness clamp (white arrow) on the vehicle side.

(1) Tilt the backrest assembly of the rear seat forward.

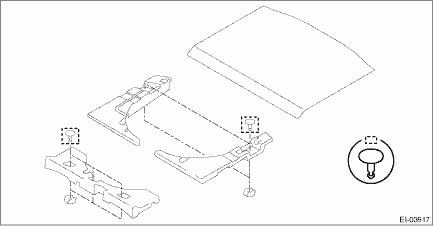

(2) Remove the clips located at the bottom of the cover COMPL - rear backrest LH and RH of the rear seat back.

(3) Remove the mat - rear floor CTR and the spacer - rear floor side.

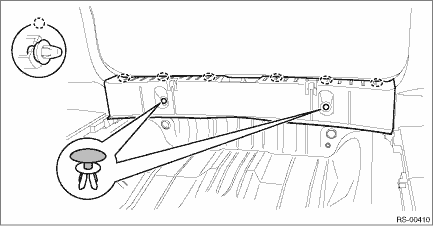

(4) Remove the clips, and remove the trim panel - rear skirt.

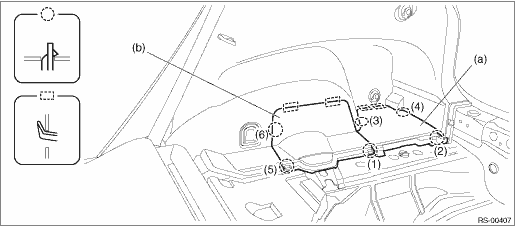

(5) Remove the lid upper rear (a) and the cap - rear strut (b) in the order from (1) to (6).

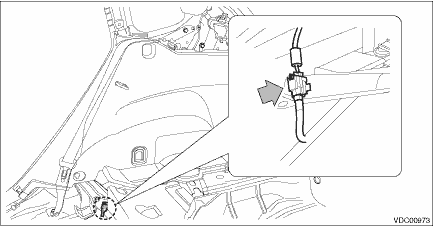

(6) Disconnect the connector of the rear ABS wheel speed sensor.

(7) Remove the grommet from the rear wheel housing, and pull out the connector of the rear ABS wheel speed sensor.

(8) Remove the harness clip and bolt, and remove the rear ABS wheel speed sensor.

Inspection
VEHICLE DYNAMICS CONTROL (VDC) > Rear ABS Wheel Speed SensorINSPECTION1. CHECK WITH SUBARU SELECT MONITOR1. Connect the Subaru Select Monitor.NOTE:For detailed operation procedures, refer to &ldquo ...

Installation
VEHICLE DYNAMICS CONTROL (VDC) > Rear ABS Wheel Speed SensorINSTALLATIONCAUTION:Be careful not to damage the sensor.1. Install each part in the reverse order of removal.2. Route the rear ABS wheel ...
