Subaru Crosstrek Service Manual: Removal

SECURITY AND LOCKS > Receiver

REMOVAL

NOTE:

Except for model with keyless entry

1. Disconnect the ground cable from battery. NOTE">

2. Remove the trim panel - rear apron LH. Rear Quarter Trim > REMOVAL">

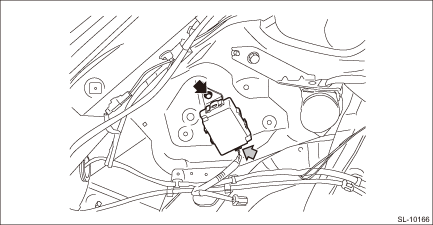

3. Remove the receiver assembly.

(1) Disconnect the connector.

(2) Remove the bolt and remove the receiver assembly.

Inspection
SECURITY AND LOCKS > ReceiverINSPECTION1. Check if the door lock operates when the touch sensor of the door outer handle and rear lock button is operated.2. If the system does not operate normally ...

Installation
SECURITY AND LOCKS > ReceiverINSTALLATIONInstall each part in the reverse order of removal.Tightening torque:Receiver assembly: 13 N·m (1.33 kgf-m, 9.6 ft-lb) ...
