SEAT BELT SYSTEM > Rear Seat Belt

REMOVAL

1. SEAT BELT OUTER - REAR RH & LH

CAUTION:

Airbag system satellite safing sensor is located in the lower of the rear seat cushion center. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Turn the ignition switch to OFF.

2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

3. Remove the rear seat cushion assembly. Rear Seat > REMOVAL">

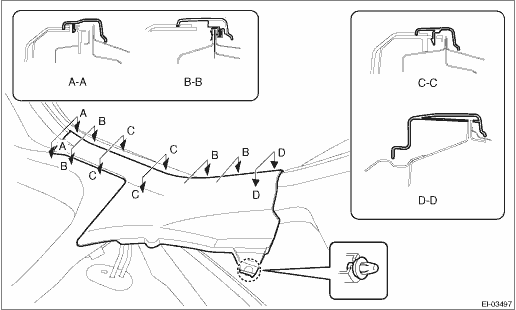

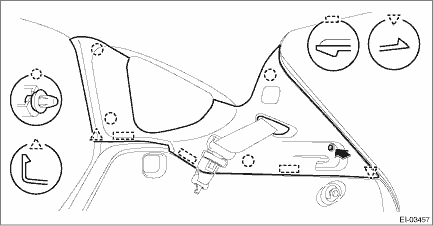

4. Remove the screws and clips, and remove the trim panel - rear quarter pillar UPR. (On the side where seat belt assembly is removed)

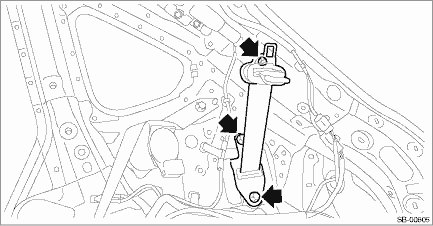

5. Remove the bolts, and remove the seat belt outer - rear.

2. SEAT BELT - REAR SHOULDER CTR

CAUTION:

Airbag system satellite safing sensor is located in the lower of the rear seat cushion center. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Turn the ignition switch to OFF.

2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

3. Remove the rear seat cushion assembly. Rear Seat > REMOVAL">

4. Release the clips and claws, and then remove the cover side sill - rear INN RH.

CAUTION:

Do not pull with excessive force. Doing so may damage the claws of the cover side sill - rear INN.

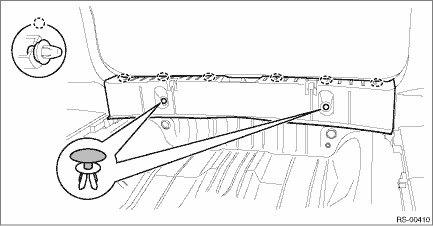

5. Remove the clips, and remove the trim panel - rear skirt.

6. Remove the trim panel - rear quarter pillar UPR RH and trim panel - rear apron RH. Rear Quarter Trim > REMOVAL">

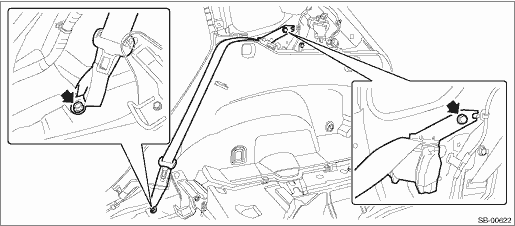

7. Remove the bolts, and remove the seat belt - rear shoulder CTR.

3. SEAT BELT - CTR RH AND LH

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

Airbag system satellite safing sensor is located in the lower of the rear seat cushion center. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.

1. Turn the ignition switch to OFF.

2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

3. Remove the rear seat cushion assembly. Rear Seat > REMOVAL">

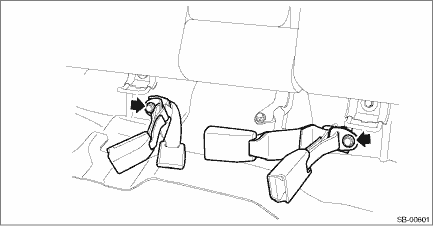

4. Remove the bolts, and remove the seat belt - CTR RH and LH.

Inspection
SEAT BELT SYSTEM > Rear Seat BeltINSPECTION1. VISUAL INSPECTIONCheck for the following, and replace with new parts if necessary.• Seat belt is slackened, bent or worn.• Seat belt is abn ...

Installation
SEAT BELT SYSTEM > Rear Seat BeltINSTALLATION1. SEAT BELT OUTER - REAR RH & LH1. Before installation, perform a unit inspection of retractor. Rear Seat Belt > INSPECTION">2. Install ...
