Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Continuously variable transmission(tr580) / Oil pan and strainer / Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Oil Pan and Strainer

REMOVAL

CAUTION:

• Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.

• Be careful not to spill CVTF on the exhaust pipe to prevent it from emitting smoke or causing a fire. If the CVTF adheres, wipe it off completely.

1. Lift up the vehicle.

2. Clean the transmission exterior.

3. Remove the CVTF drain plug to drain CVTF.

4. Remove the oil pan.

CAUTION:

Be careful not to allow foreign matter such as dust or dirt to enter the oil pan.

5. Remove the magnet.

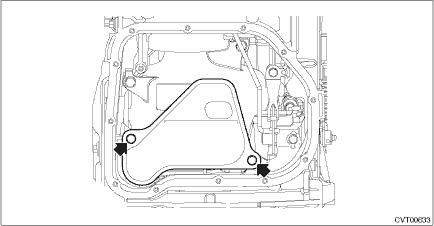

6. Remove the oil strainer.

7. Remove the O-ring from oil strainer.

Inspection

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Oil Pan and StrainerINSPECTION• Check each part for damage or dust.• Check oil strainer for clogging. ...

Installation

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Oil Pan and StrainerINSTALLATION1. Clean the mating surface of oil pan and transmission case.2. Install the O-ring to the oil strainer.NOTE:• Use n ...
