Subaru Crosstrek Service Manual / Rear suspension / Rear trailing link / Removal

REAR SUSPENSION > Rear Trailing Link

REMOVAL

1. Lift up the vehicle, and then remove the rear wheels.

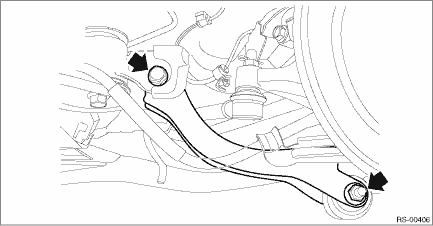

2. Remove the bolts and nuts, and then remove the trailing link.
