Subaru Crosstrek Service Manual: Removal
LIGHTING SYSTEM > SRF OFF Switch
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the cover assembly - instrument panel LWR driver OUT. Instrument Panel Lower Cover > REMOVAL">

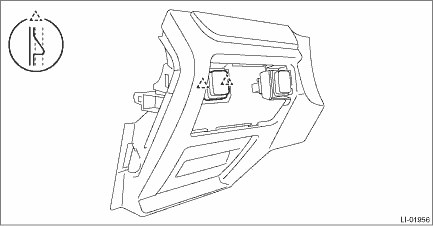

3. Release the claws, and then remove the cover.

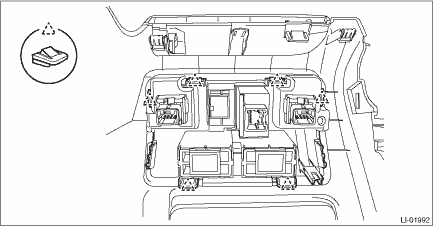

4. Release the claws and remove the SRF OFF switch.
Inspection
LIGHTING SYSTEM > SRF OFF SwitchINSPECTION1. Measure the resistance between connector terminals.Preparation tool:Circuit testerTerminal No.Inspection conditionsStandard2 — 3OFF1 M? or moreONLess ...
Installation
LIGHTING SYSTEM > SRF OFF SwitchINSTALLATIONInstall each part in the reverse order of removal. ...
