Subaru Crosstrek Service Manual / Lighting system / Rear combination light assembly / Removal

LIGHTING SYSTEM > Rear Combination Light Assembly

REMOVAL

1. CROSSTREK MODEL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the light assembly - rear combination.

CAUTION:

Be careful not to damage the clips.

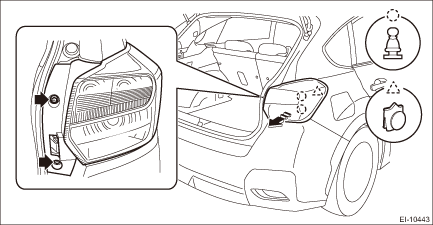

(1) Release the bolts and clips, then pull out the light assembly - rear combination to the vehicle rear.

(2) Disconnect the connector and remove the light assembly - rear combination.

Inspection

LIGHTING SYSTEM > Rear Combination Light AssemblyINSPECTION1. Apply battery voltage between the connector terminals to check the lighting condition of the light.Terminal No.Inspection conditionsSpe ...

Installation

LIGHTING SYSTEM > Rear Combination Light AssemblyINSTALLATIONInstall each part in the reverse order of removal.Tightening torque:Light assembly - rear combination: 7.5 N·m (0.76 kgf-m, 5.5 f ...
