Subaru Crosstrek Service Manual: Removal
LIGHTING SYSTEM > Luggage Room Light
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the light assembly - luggage room.
CAUTION:
When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.

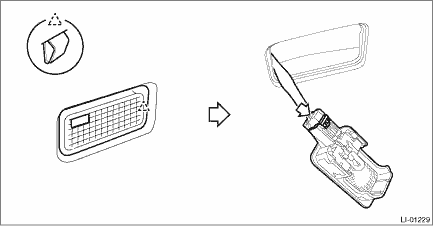

(1) Release the claws and remove the main body of the light assembly - luggage room.
(2) Disconnect the connector and remove the light assembly - luggage room and the bulb.
CAUTION:
Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
Inspection
LIGHTING SYSTEM > Luggage Room LightINSPECTION1. LUGGAGE ROOM LIGHT BULB1. Visually check the bulb for blow out.2. Check the bulb specification. General Description > SPECIFICATION">3. ...
Installation
LIGHTING SYSTEM > Luggage Room LightINSTALLATIONInstall each part in the reverse order of removal. ...
