LIGHTING SYSTEM > Light Control Sensor
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the sensor - automatic light.
CAUTION:
Be careful not to damage the sensors and interior trims when removing.

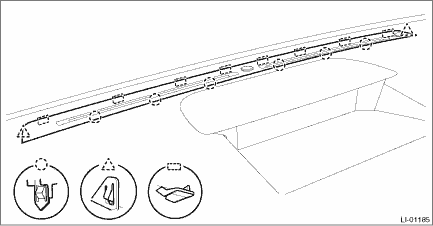

(1) Release the connectors and claws, and remove the grille front defroster.

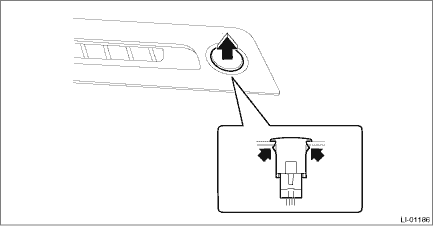

(2) Release the claws, and then remove the sensor - automatic light from the grille front defroster.
Inspection
LIGHTING SYSTEM > Light Control SensorINSPECTION1. Turn the ignition switch to ON.2. Set the lighting switch to AUTO position.3. Check the voltage between the sensor terminals.Preparation tool:Circ ...
Installation
LIGHTING SYSTEM > Light Control SensorINSTALLATIONInstall each part in the reverse order of removal. ...
