Subaru Crosstrek Service Manual: Removal
LIGHTING SYSTEM > Front Turn Signal Light Bulb
REMOVAL
1. Disconnect the ground cable from battery. NOTE">

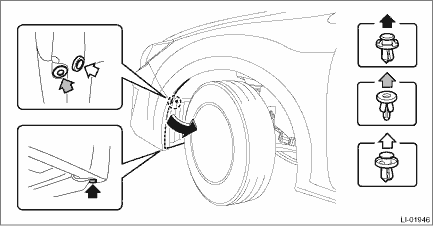

2. Turn the steering wheel in the opposite direction from the parts to be removed. Then remove the clips and turn over the mud guard - front.

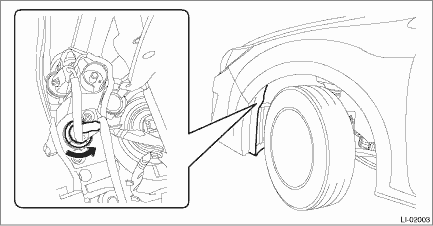

3. Remove the bulb socket and front turn signal light bulb.
CAUTION:
Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
Inspection
LIGHTING SYSTEM > Front Turn Signal Light BulbINSPECTION1. Visually check the bulb for blow out.2. Check the bulb specification. General Description > SPECIFICATION">3. Replace the bulb ...
Installation
LIGHTING SYSTEM > Front Turn Signal Light BulbINSTALLATIONInstall each part in the reverse order of removal. ...
