HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Compressor

REMOVAL

1. CROSSTREK MODEL

1. Perform compressor oil return operation. Compressor Oil > PROCEDURE">

2. Turn the A/C switch to OFF, and turn the ignition switch to OFF.

3. Using the refrigerant recovery system, discharge refrigerant. Refrigerant Recovery Procedure > PROCEDURE">

4. Disconnect the ground cable from battery.

5. Remove the V-belts. V-belt > REMOVAL">

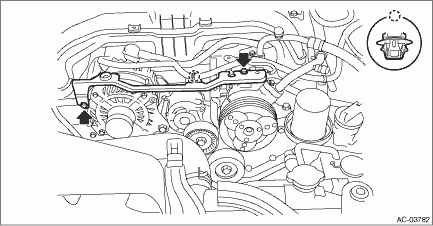

6. Remove the harness clips and bolts and remove the V-belt cover bracket.

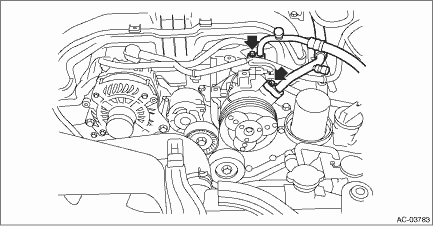

7. Remove the bolt, and detach the hose - pressure suction and the hose - pressure discharge.

CAUTION:

Seal the disconnected hose and engaging part of compressor with a plug or vinyl tape to prevent foreign matter from entering.

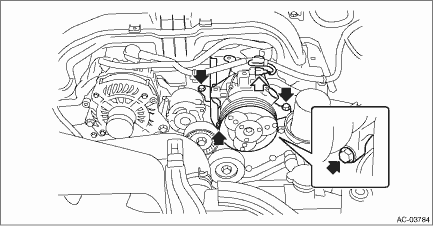

8. Remove the compressor assembly.

(1) Disconnect the connector.

(2) Remove the bolts and remove the compressor assembly.

NOTE:

Tighten the engine hanger together with the compressor assembly.
