Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Hvac system (heater, ventilator and a/c) / Blower resistor (manual a/c model) / Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Blower Resistor (Manual A/C Model)

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the glove box. Glove Box > REMOVAL">

3. Remove the engine control module (ECM). Engine Control Module (ECM) > REMOVAL">

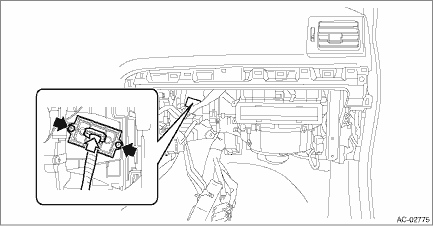

4. Remove the resistor.

(1) Disconnect the connector.

(2) Remove the screw and remove the resistor.

Inspection

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Blower Resistor (Manual A/C Model)INSPECTION1. Check the resistance between resistor terminals.Preparation tool:Circuit testerTerminal No.StandardConnecti ...

Installation

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Blower Resistor (Manual A/C Model)INSTALLATIONInstall each part in the reverse order of removal. ...
