Subaru Crosstrek Service Manual: Removal
HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Blower Motor
REMOVAL
1. Disconnect the ground cable from battery. NOTE">

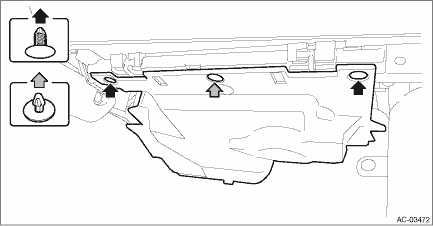

2. Release the clips, and remove the under cover assembly - passenger.
3. Remove the blower - motor.
(1) Disconnect the connector.
(2) Remove the screws and detach the blower - motor.
Inspection
HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Blower MotorINSPECTION1. Check the motor operation when battery voltage is applied between the terminals of motor.Terminal No.Inspection conditionsSpecifi ...
Installation
HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Blower MotorINSTALLATIONInstall each part in the reverse order of removal. ...
