Subaru Crosstrek Service Manual: Installation
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Sunroof Assembly
INSTALLATION
CAUTION:
• Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">
• For installation of the stereo camera cover assembly, refer to “INSTALLATION”, “Stereo Camera” in the “EyeSight” section and observe the precautions for installation. Stereo Camera > INSTALLATION">
• Be careful not to snag the harness.
1. Install each connector and the drain tube - sunroof.
Tightening torque:
Connector holder: 7.5 N·m (0.76 kgf-m, 5.5 ft-lb)
Ground bolt: 13 N·m (1.33 kgf-m, 9.6 ft-lb)
2. Install the sunroof bracket and the rail assembly - sunroof.
Tightening torque:
6 N·m (0.61 kgf-m, 4.4 ft-lb)
3. Connect the harness connector of the drain tube - sunroof and the motor assembly.
CAUTION:

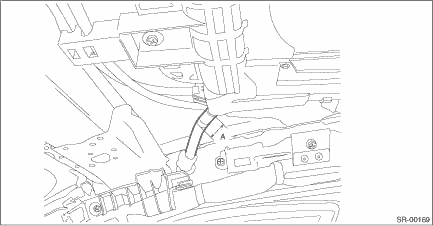

Insert the four drain tubes 15 mm (0.59 in) or more into the drain pipes (A).
4. Install the curtain airbag module. Curtain Airbag Module > INSTALLATION">
5. Install the bracket - assist rail.
Tightening torque:
7.5 N·m (0.76 kgf-m, 5.5 ft-lb)
6. Install the trim panel - roof assembly. Roof Trim > INSTALLATION">
7. Using a new TORX® bolt, install the lid assembly - sunroof.
Tightening torque:
4.5 N·m (0.46 kgf-m, 3.3 ft-lb)
