Subaru Crosstrek Service Manual: Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Air Mix Door Actuator

REMOVAL

1. LH

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL">

3. Remove the knee airbag module. Knee Airbag Module > REMOVAL">

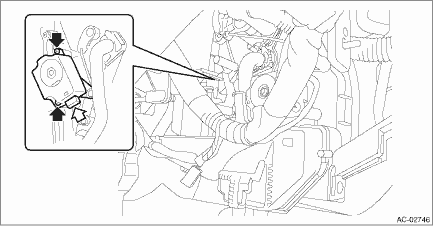

4. Remove the motor - actuator mix.

(1) Disconnect the connector, and remove the rod from the rod clamp.

(2) Remove the screws and detach the motor - actuator mix.

2. RH

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the glove box. Glove Box > REMOVAL">

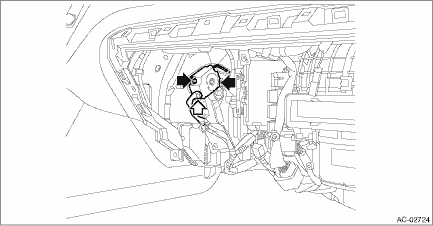

3. Remove the motor - actuator mix.

(1) Disconnect the connector, and remove the rod from the rod clamp.

(2) Remove the screws and detach the motor - actuator mix.
