FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Main Relay

REMOVAL

1. Disconnect the ground cable from battery.

2. Remove the glove box. Glove Box > REMOVAL">

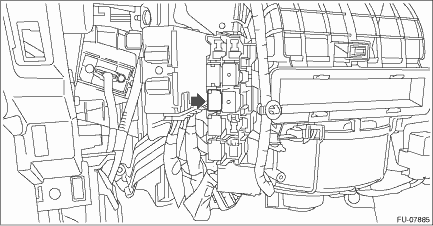

3. Remove the main relay from relay block.

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Main RelayINSPECTION1. Check that the main relay has no deformation, cracks or other damages.2. Measure the resistance between main relay terminals.Terminal No ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Main RelayINSTALLATIONInstall in the reverse order of removal. ...
