Subaru Crosstrek Service Manual: Removal
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Tank Protector
REMOVAL
1. Lift up the vehicle.

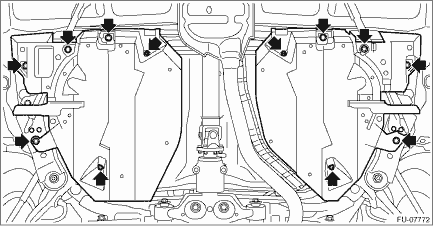

2. Remove the bolt and nuts and remove the fuel tank protector.
Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Tank ProtectorINSTALLATIONInstall in the reverse order of removal.NOTE:Use a new self-locking nut.Tightening torque:T1: 9 N·m (0.9 kgf-m, 6.6 ft-lb ...
