FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Tank Protector

INSTALLATION

Install in the reverse order of removal.

NOTE:

Use a new self-locking nut.

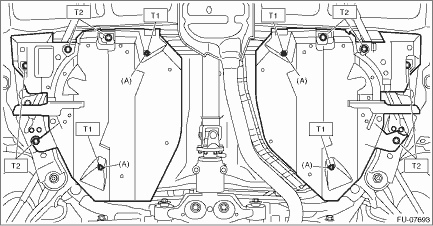

Tightening torque:

T1: 9 N·m (0.9 kgf-m, 6.6 ft-lb)
T2: 18 N·m (1.8 kgf-m, 13.3 ft-lb)

(A)

Self-locking nut
