Subaru Crosstrek Service Manual / Front suspension / Front crossmember support plate / Removal

FRONT SUSPENSION > Front Crossmember Support Plate

REMOVAL

1. Lift up the vehicle.

2. Remove the under cover - front. Front Under Cover > REMOVAL">

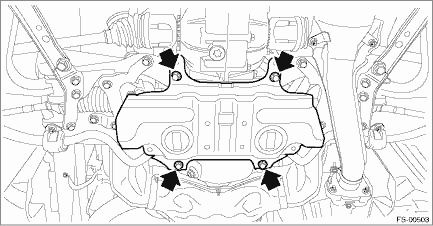

3. Remove the bolt, and remove the front crossmember support.

Installation

FRONT SUSPENSION > Front Crossmember Support PlateINSTALLATIONCAUTION:Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud gua ...
