Subaru Crosstrek Service Manual: Installation

FRONT SUSPENSION > Front Crossmember Support Plate

INSTALLATION

CAUTION:

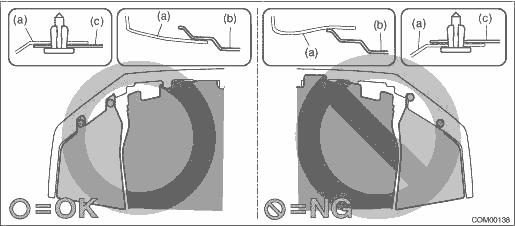

Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper face - front (a).

Install each part in the reverse order of removal.

Tightening torque:

Front crossmember support: 60 N·m (6.12 kgf-m, 44.3 ft-lb)

Under cover - front: 18 N·m (1.84 kgf-m, 13.3 ft-lb)

Front crossmember support plate
...

Removal
FRONT SUSPENSION > Front Crossmember Support PlateREMOVAL1. Lift up the vehicle.2. Remove the under cover - front. Front Under Cover > REMOVAL">3. Remove the bolt, and remove the front ...
