Subaru Crosstrek Service Manual: Removal
EXTERIOR/INTERIOR TRIM > Roof Spoiler
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the trim panel - rear gate UPR. Rear Gate Trim > REMOVAL">

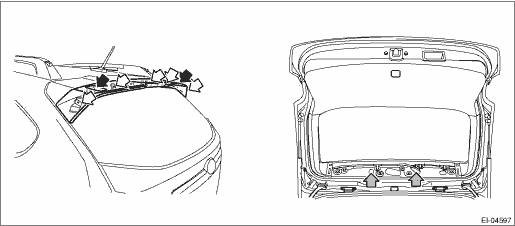

3. Remove the roof spoiler assembly.
(1) Disconnect the connector of high-mounted stop light.
(2) Remove the caps, and remove the bolts.
(3) Remove the nuts.
(4) Remove the nuts, and remove the roof spoiler assembly.
Installation
EXTERIOR/INTERIOR TRIM > Roof SpoilerINSTALLATIONCAUTION:• Make sure that packings are attached on the clips of the roof spoiler assembly. If a gasket is not attached, water leakage may occur ...
