Subaru Crosstrek Service Manual: Removal
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Secondary Pressure Sensor
REMOVAL
CAUTION:
• Be sure to prevent water or oil from contacting the connector terminal of secondary pressure sensor. If adhesion occurs, replace with a new part.
• When secondary pressure sensor is removed, CVTF leaks. After installing the secondary pressure sensor, adjust the CVTF level.
1. Disconnect the ground cable from battery. NOTE">
NOTE:
For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Lift up the vehicle.
3. Remove the secondary pressure sensor connector.

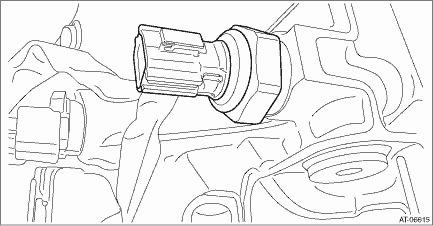

4. Remove the secondary pressure sensor.
Inspection
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Secondary Pressure SensorINSPECTION1. Start and warm up the engine.2. Depress the brake pedal, and shift the select lever to “D” range.3. Shi ...
Installation
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Secondary Pressure SensorINSTALLATIONCAUTION:• Be sure to prevent water or oil from contacting the connector terminal of secondary pressure sensor. ...
