Subaru Crosstrek Service Manual: Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Primary Speed Sensor

REMOVAL

CAUTION:

Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL">

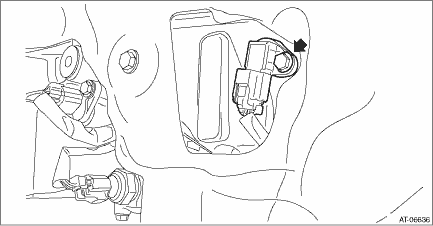

2. Remove the primary speed sensor.

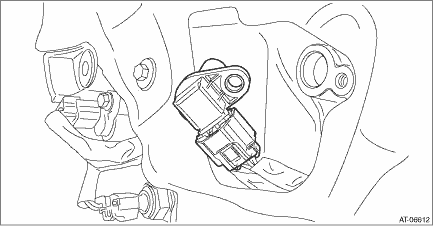

3. Remove the harness connector from primary speed sensor.

Inspection
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Primary Speed SensorINSPECTION1. Set the ST between the TCM and bulkhead harness.ST 18460AA040CHECK BOARD2. Set the probe of oscilloscope to the check ...

Installation
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Primary Speed SensorINSTALLATIONCAUTION:Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occur ...
