BRAKE > Front Disc Brake Assembly

REMOVAL

CAUTION:

Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.

1. Lift up the vehicle, and then remove the front wheels.

2. Remove the caliper body assembly.

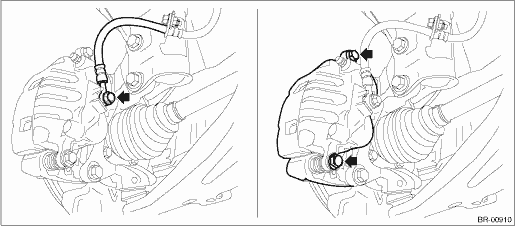

(1) Remove the union bolt and caliper bolt, and remove the caliper body assembly from the support - front disc brake.

3. Remove the support - front disc brake.

NOTE:

Remove the support - front disc brake only when replacing the disc rotor or the support - front disc brake. It is not necessary to remove it when servicing the caliper body assembly.

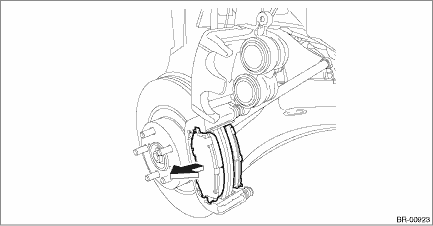

(1) Remove the brake pad from support - front disc brake.

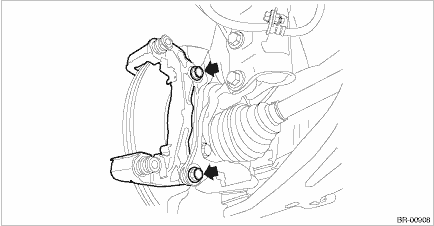

(2) Remove the mounting bolts, and then remove the support - front disc brake from the housing assembly - front axle.

Assembly
BRAKE > Front Disc Brake AssemblyASSEMBLY1. Before assembly, check each part. Front Disc Brake Assembly > INSPECTION">2. Clean the inside of the caliper body cylinder using brake fluid. ...

Disassembly
BRAKE > Front Disc Brake AssemblyDISASSEMBLYCAUTION:Be careful not to allow foreign matter to enter the brake hose connector.1. Remove mud and foreign matter from the caliper body.2. Remove the pis ...
