Subaru Crosstrek Service Manual: Removal
SECURITY AND LOCKS > Keyless Access CM
REMOVAL
CAUTION:
Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">
1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">
2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL">
3. Remove the knee airbag module. Knee Airbag Module > REMOVAL">
4. Release the lock and remove the fuse holder.
5. Remove the relay & fuse box.

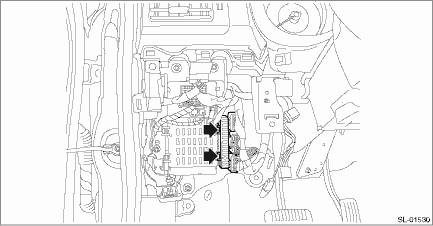

(1) Disconnect the connector.

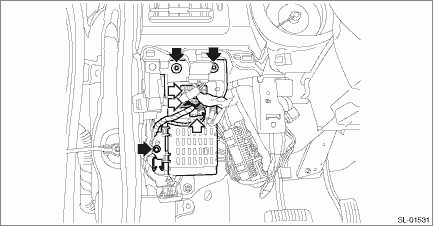

(2) Remove the bolts and nuts, and remove the relay & fuse box.
6. Remove the keyless access CM.
CAUTION:
Be careful to keep water and other foreign materials away from body integrated unit terminals.

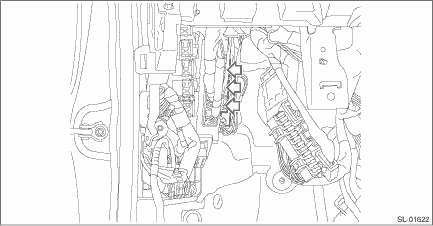

(1) Disconnect the connector.

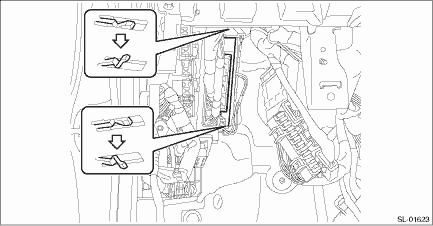

(2) Release the claws, and pull out the keyless access CM from the bracket.
