Subaru Crosstrek Service Manual: Rear wiring harness and rear gate cord Location
WIRING SYSTEM > Rear Wiring Harness and Rear Gate Cord

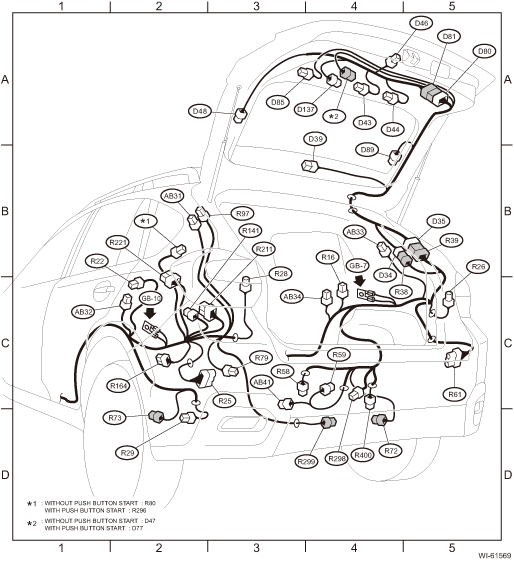

LOCATION
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
R16 | 3 |
| C-4 | Rear door switch RH | |
R22 | 3 |
| C-2 | Rear door switch LH | |
R25 | 10 | Black | C-2 | Radar sensor LH (master) | |
R26 | 6 | Gray | C-5 | Rear combination light RH | |
R28 | 6 | Gray | C-3 | Rear combination light LH | |
R29 | 3 | Black | D-2 | Rear vehicle height sensor | |
R38 | 8 |
| B-5 | D34 | Rear gate cord |
R39 | 14 | Gray | B-5 | D35 | |
R58 | 4 |
| C-3 | Fuel pump assembly | |
R59 | 2 |
| C-4 | Fuel sub level sensor | |
R61 | 10 | Black | C-5 | Radar sensor RH (slave) | |
R72 | 2 | Light gray | D-4 | Rear ABS wheel speed sensor RH | |
R73 | 2 | Light gray | D-2 | Rear ABS wheel speed sensor LH | |
R79 | 8 |
| C-3 | Trailer connector | |
R80 | 8 |
| B-2 | Keyless entry CM | |
R97 | 1 |
| B-2 | Antenna feeder cord | |
R141 | 2 | Light gray | C-2 | Luggage room light | |
R164 | 10 | Green | C-2 | J/C | |
R211 | 12 |
| C-2 | TPMS CM | |
R221 | 12 |
| C-2 | TPMS & keyless entry CM | |
R296 | 5 |
| B-2 | Receiver | |
R298 | 3 |
| C-4 | Keyless access interior antenna (rear) | |
R299 | 6 |
| D-4 | Keyless access exterior antenna (rear) | |
R400 | 8 | Gray | C-4 | Leak check valve assembly | |
| |||||
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
D34 | 8 |
| B-4 | R38 | Rear wiring harness RH |
D35 | 14 | Gray | B-5 | R39 | |
D39 | 2 |
| B-4 | High-mounted stop light | |
D43 | 4 |
| A-4 | Rear wiper motor | |
D44 | 2 |
| A-4 | License plate light RH | |
D46 | 4 |
| A-4 | Rear gate lock actuator & latch switch | |
D47 | 2 | Brown | A-4 | Rear gate opener button | |
D48 | 1 | Black | A-3 | Rear defogger | |
D77 | 4 |
| A-4 | Rear lock button & rear gate opener button | |
D80 | 8 |
| A-5 | D81 | Rear gate cord |
D81 | 8 |
| A-5 | D80 | |
D85 | 4 |
| A-4 | Rearview camera | |
D89 | 1 | Black | B-4 | Rear defogger | |
D137 | 2 |
| A-4 | License plate light LH | |
| |||||
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
AB31 | 2 | Black | B-2 | Curtain airbag module LH | |
AB32 | 4 | Yellow | C-2 | Curtain airbag sensor LH | |
AB33 | 2 | Black | B-4 | Curtain airbag module RH | |
AB34 | 4 | Yellow | C-4 | Curtain airbag sensor RH | |
AB41 | 2 | Yellow | C-3 | Satellite safing sensor | |
| |||||
