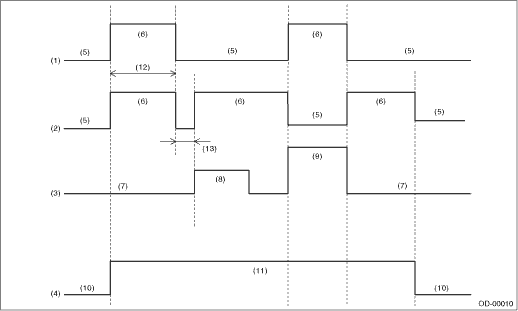

OCCUPANT DETECTION SYSTEM (DIAGNOSTICS) > Passenger’s Airbag ON/OFF Indicator Light Illumination Pattern
INSPECTION
(1) | Passenger’s airbag ON indicator light | (6) | Light ON | (10) | OFF |
(2) | Passenger’s airbag OFF indicator light | (7) | Empty | (11) | ON |
(3) | Occupant seating | (8) | Child | (12) | Approx. 6 sec. |
(4) | Ignition switch | (9) | Adult | (13) | Approx. 2 sec. |
(5) | Light OFF |
