Subaru Ascent 2018-2026 Owner's Manual: Malfunctions of the center information display

Subaru Ascent 2018-2026 Owner's Manual / In case of emergency / Malfunctions of the center information display

If your Subaru Ascent displays any of the following abnormal screen behaviors, it may indicate a temporary glitch or malfunction within the center information display system.

In many cases, such issues are minor and can be resolved by performing a simple reset procedure. Follow the steps below to attempt recovery of the display functionality in your Subaru Ascent.

Subaru Ascent center information display shutting down screen example
Shutting down the screen

Subaru Ascent center information display freezing issue example
Freezing the screen

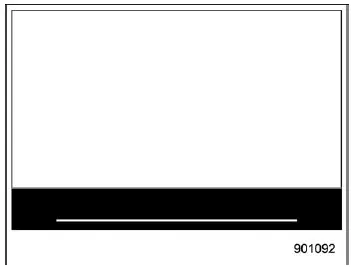

Subaru Ascent center information display black screen condition
Blacking out the screen

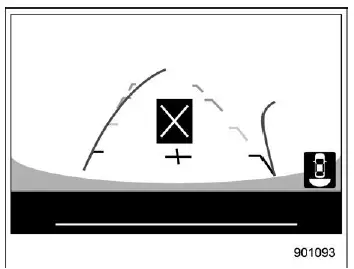

Subaru Ascent center information display error A warning
Error A

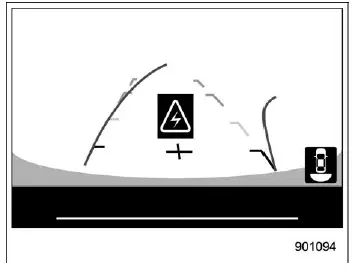

Subaru Ascent center information display error B warning
Error B

1. Safely park your Subaru Ascent in a secure location away from traffic.

2. Turn the ignition switch to the "LOCK/OFF" position, wait briefly, and then restart the engine to attempt a system reset.

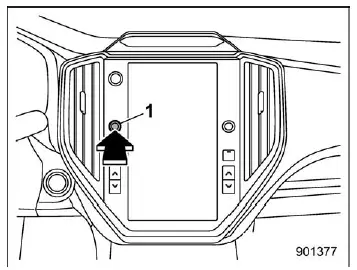

Subaru Ascent volume button used for display reset procedure

Volume button

3. If the center information display in your Subaru Ascent does not recover after restarting the engine, press and hold the volume button for more than 10 seconds.

This action will force the system to reboot and may restore normal operation.

4. If the display still does not respond after performing these steps, contact your SUBARU dealer for further diagnostics and repair.

Moonroof (if equipped) - if the moonroof does not close

If the moonroof in your Subaru Ascent fails to close properly, it is recommended to have the system inspected by an authorized SUBARU dealer to prevent further complications or water intrusion.

Rear gate - if the rear gate cannot be opened

If the rear gate of your Subaru Ascent cannot be opened using the standard external button, it is possible to unlock it manually from inside the cargo area as an emergency measure. 1. Careful ...

If your vehicle is involved in an accident

To restart the engine when involved in an accident CAUTION If your Subaru Ascent has been involved in an accident, carefully inspect the ground beneath the vehicle before attempting to restart ...
