Subaru Crosstrek Service Manual: Location
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Relay and Fuse
LOCATION

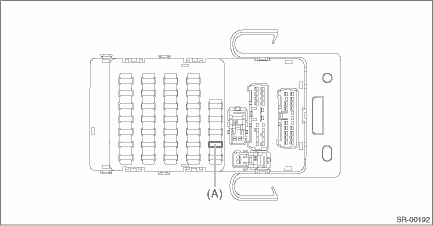

Relay & fuse box | Fuse 10A (IG 2) | (A) |
NOTE:
For other related fuses, refer to the wiring diagram. Power Supply Circuit">
Inspection
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Relay and FuseINSPECTION1. CHECK FUSE1. Remove the fuse and check visually.2. If the fuse is blown out, replace the fuse. ...
