SECURITY AND LOCKS > Relay and Fuse

LOCATION

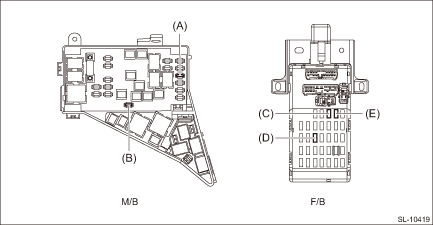

Main fuse box	Fuse 15 A (key warning switch, turn signal & hazard unit, body integrated unit)	(A)
Main fuse box	Fuse 20 A (body integrated unit, immobilizer antenna)	(B)
Relay & fuse box	Fuse 15 A (body integrated unit)	(C)
	Fuse 10 A (keyless access CM, TPMS & keyless entry CM)	(D)
	Fuse 10 A (TPMS & keyless entry CM)	(E)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit">

Inspection

SECURITY AND LOCKS > Relay and FuseINSPECTION1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.NOTE:If the fuse is blown again, check the system wir ...
