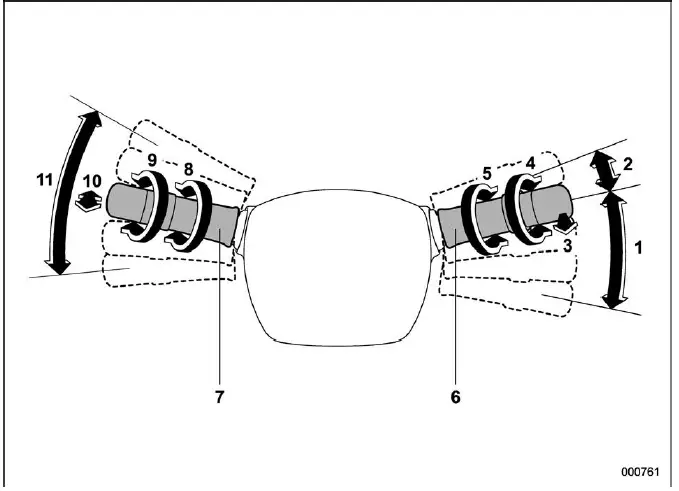

Subaru Ascent 2018-2026 Owner's Manual: Light control and wiper control levers/switches
The Subaru Ascent provides intuitive control over lighting and wiper systems, ensuring optimal visibility in all driving conditions, from heavy rain to nighttime travel.
- Windshield wiper
- Mist
- Windshield washer
- Rear window wiper and washer switch
- Wiper intermittent time control switch /Sensor sensitivity control
- Windshield wiper and washer switches
- Light control switch
- Fog light switch
- Headlight ON/OFF/AUTO
- Headlight flasher High/Low beam change
- Turn signal lever
Combination meter

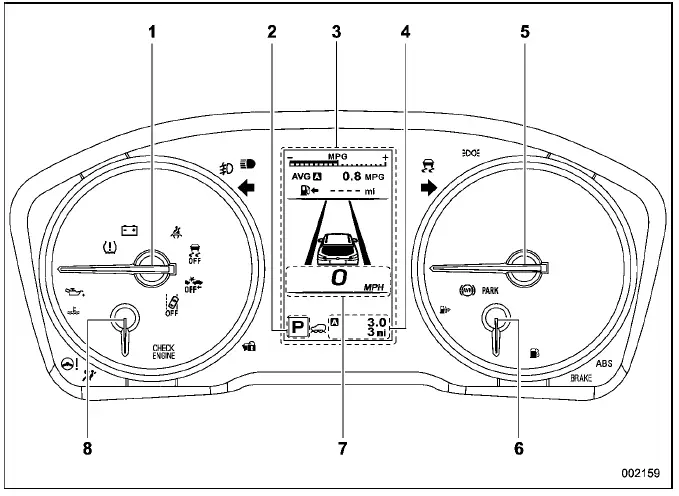

U.S.-spec. models
The illustration above is a typical example. For some Subaru Ascent models, the combination meter may differ slightly depending on configuration and market specifications.
- Tachometer
- Select lever/gear position indicator
- Combination meter display
- Trip meter and odometer
- Speedometer
- Fuel gauge
- Digital speed screen
- Engine coolant temperature gauge

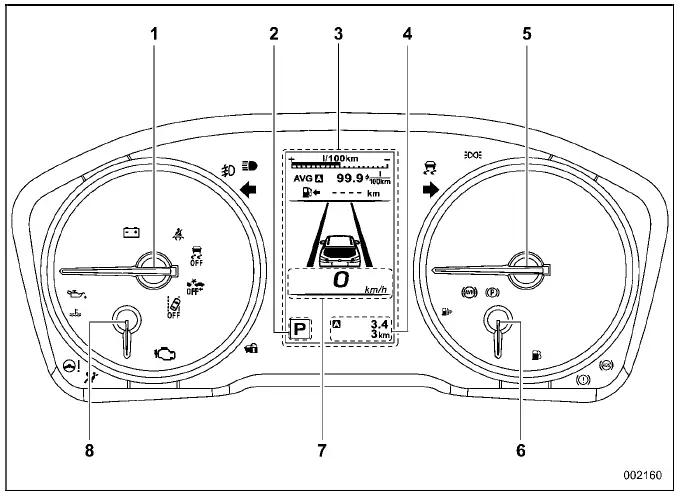

Except U.S.-spec. models
This version of the Subaru Ascent instrument cluster is adapted for non-U.S. markets, while maintaining the same core functionality and driver information display.
- Tachometer
- Select lever/gear position indicator
- Combination meter display
- Trip meter and odometer
- Speedometer
- Fuel gauge
- Digital speed screen
- Engine coolant temperature gauge
Instrument panel
The Subaru Ascent instrument panel combines modern technology with user-friendly
controls, allowing drivers to access critical information quickly while maintaining
focus on the road.
Seat ...
Warning and indicator lights
The Subaru Ascent is equipped with a comprehensive range of warning and indicator
lights designed to keep the driver fully informed about vehicle status, safety systems,
and potential issues. Unde ...
