WIRING SYSTEM > Instrument Panel Wiring Harness

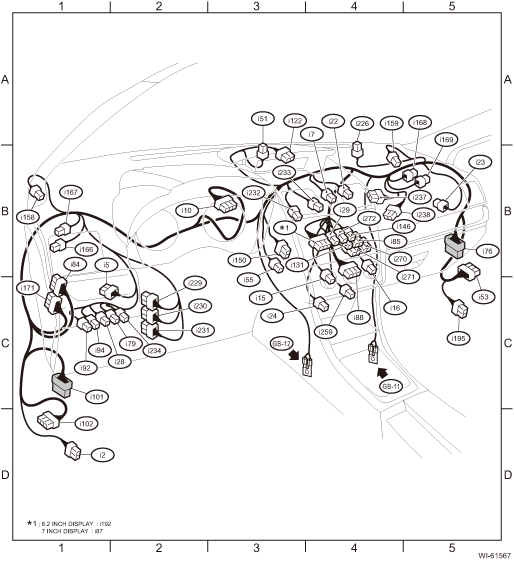

LOCATION
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
i2 | 10 |
| D-1 | R339 | Rear wiring harness LH |
i5 | 20 |
| C-1 | F/B | |
i7 | 4 | Gray | B-4 | MFD switch | |
i10 | 40 |
| B-3 | Combination meter | |
i15 | 6 |
| C-4 | Blower fan switch (manual A/C) | |
i16 | 16 |
| B-4 | A/C control panel (manual A/C) | |
i22 | 4 |
| B-4 | Hazard switch | |
i23 | 2 |
| B-5 | Glove box light | |
i24 | 2 |
| C-4 | Front accessory power supply socket | |
i28 | 4 | Gray | C-1 | OP connector (fog light switch) | |
i29 | 1 |
| B-4 | Audio bracket ground | |
i51 | 2 |
| B-3 | Sunload sensor | |
i53 | 24 |
| B-5 | R98 | Rear wiring harness RH |
i55 | 2 |
| B-3 | In-vehicle sensor | |
i76 | 28 |
| B-5 | D83 | Front door cord RH |
i79 | 6 |
| C-2 | Illumination control switch | |
i84 | 35 | Black | C-1 | Body integrated unit | |
i85 | 10 |
| B-4 | Audio | |
10 |
| B-4 | Navigation unit | ||
i87 | 28 |
| B-4 | Audio | |
28 |
| B-4 | Navigation unit | ||
i88 | 40 |
| B-4 | A/C control panel (auto A/C) | |
i92 | 4 | Gray | C-1 | SRF OFF switch | |
i94 | 6 | Gray | C-1 | BSD/RCTA OFF switch | |
i101 | 28 |
| C-1 | D84 | Front door cord LH |
i102 | 24 |
| D-1 | R167 | Rear wiring harness LH |
i122 | 12 | Black | B-3 | MFD | |
i131 | 6 |
| B-4 | Audio | |
6 |
| B-4 | Navigation unit | ||
i146 | 5 |
| B-4 | Audio | |
5 |
| B-4 | Navigation unit | ||
i150 | 14 |
| B-3 | Push button ignition switch | |
i158 | 4 |
| B-1 | Side tweeter LH | |
i159 | 4 |
| B-4 | Side tweeter RH | |
i166 | 4 |
| B-1 | J/C | |
i167 | 4 |
| B-1 | ||
i168 | 4 |
| B-5 | ||
i169 | 4 |
| B-5 | ||
i171 | 31 |
| C-1 | Body integrated unit | |
i192 | 28 |
| B-4 | Audio | |
i195 | 10 |
| C-5 | R382 | Rear wiring harness RH |
i226 | 3 |
| B-4 | Light control sensor | |
i229 | 12 |
| C-2 | B551 | Bulkhead wiring harness LH |
i230 | 17 | Gray | C-2 | B552 | |
i231 | 20 |
| C-2 | B553 | |
i232 | 8 |
| B-3 | J/C | |
i233 | 8 |
| B-4 | ||
i234 | 4 |
| C-2 | VDC OFF switch | |
i237 | 12 |
| B-4 | B583 | Bulkhead wiring harness RH |
i238 | 20 |
| B-4 | B584 | |
i259 | 2 |
| C-4 | Pocket light | |
i270 | 20 | Gray | B-4 | Data communication module | |
i271 | 16 | Gray | B-4 | ||
i272 | 8 |
| B-4 | Audio | |
8 |
| B-4 | Navigation unit | ||
| |||||
