Subaru Crosstrek Service Manual: Installation
WIPER AND WASHER SYSTEMS > Washer Tank and Motor
INSTALLATION
1. Install each part in the reverse order of removal.
CAUTION:

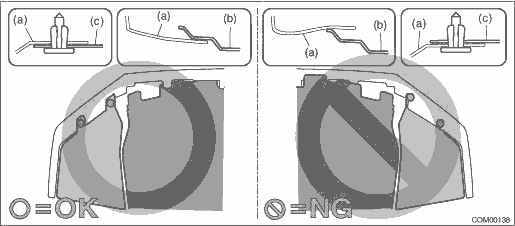

• Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper face - front (a).
• Before installing the bumper face, match the claws on the bracket - front bumper with the engaging position of flange section on the bumper face side. If the engaging position is not correct, the flange section may be broken or the clearance between fender panel and bumper face may not be uniform.
Tightening torque:
6.0 N·m (0.61 kgf-m, 4.4 ft-lb)
2. Add new washer fluid.
3. Adjust the fog light beam. (Model with fog light) Front Fog Light Assembly > ADJUSTMENT">
