Subaru Crosstrek Service Manual: Installation

Subaru Crosstrek Service Manual / Sunroof/t-top/convertible top (sunroof) / Glass lid / Installation

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass Lid

INSTALLATION

1. GLASS LID

1. Using a new TORX® bolt, install the lid assembly - sunroof.

Tightening torque:

4.5 N·m (0.46 kgf-m, 3.3 ft-lb)

2. Perform the open/close operation checks for the glass lid.

3. Check the height of the lid assembly - sunroof and the roof panel, and perform adjustment when there is a difference between up and down, and left and right. Glass Lid > ADJUSTMENT">

2. DEFLECTOR ASSEMBLY

1. Install each part in the reverse order of removal.

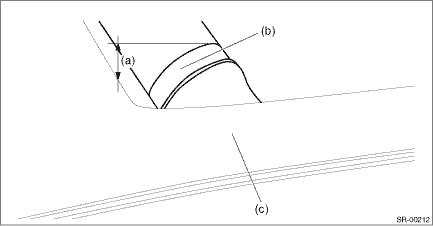

2. After installation, measure the height from the roof panel when deflector assembly - sunroof is activated.

(a)

14 mm (0.55 in)

(b)

Deflector ASSY - sunroof

(c)

Roof panel

Forced drive

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass LidFORCED DRIVEIf the lid assembly - sunroof does not operate or the motor assembly is not supplied with power, move the lid assembly - sunroof using ...

Removal

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass LidREMOVAL1. GLASS LID1. Completely close the lid assembly - sunroof, and open the sunshade assembly.2. Remove the TORX® bolt, and then remove the l ...
