Subaru Crosstrek Service Manual: Removal
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass Lid
REMOVAL
1. GLASS LID
1. Completely close the lid assembly - sunroof, and open the sunshade assembly.

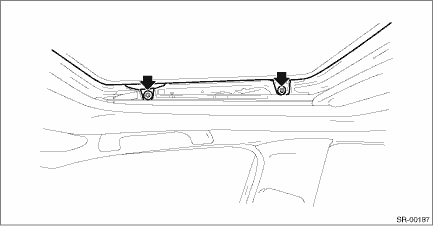

2. Remove the TORX® bolt, and then remove the lid assembly - sunroof.
CAUTION:
Be careful not to damage the lid assembly - sunroof.
PREPARATION TOOL:
TORX® T25
2. DEFLECTOR ASSEMBLY
1. Open the lid assembly - sunroof and the sunshade assembly.
2. Remove the deflector assembly - sunroof.

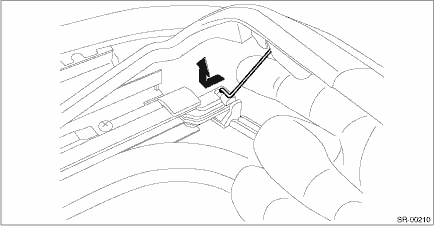

(1) Remove the spring from the rail assembly - sunroof.

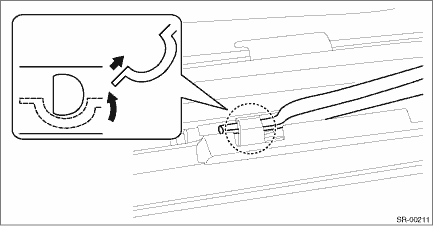

(2) While lifting up the deflector assembly - sunroof, remove the deflector assembly - sunroof from the hook on the rail assembly - sunroof.
Installation
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass LidINSTALLATION1. GLASS LID1. Using a new TORX® bolt, install the lid assembly - sunroof.Tightening torque:4.5 N·m (0.46 kgf-m, 3.3 ft-lb)2. ...
