Subaru Crosstrek Service Manual: Removal

LIGHTING SYSTEM > Room Light

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the light assembly - room.

CAUTION:

When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.

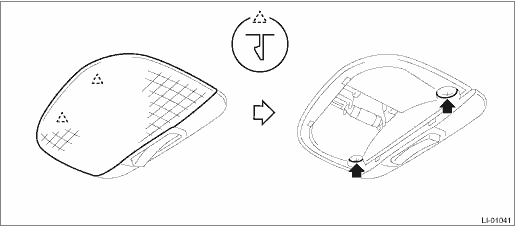

(1) Release the claws and remove the lens.

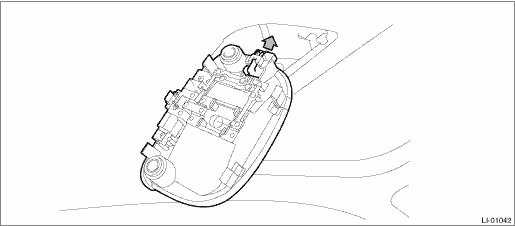

(2) Remove the screws and pull out the light assembly - room.

(3) Disconnect the connector and remove the light assembly - room and the bulb.

CAUTION:

Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

Inspection
LIGHTING SYSTEM > Room LightINSPECTION1. ROOM LIGHT BULB1. Visually check the bulb for blow out.2. Check the bulb specification. General Description > SPECIFICATION">3. Replace the bulb ...

Installation
LIGHTING SYSTEM > Room LightINSTALLATIONInstall each part in the reverse order of removal. ...
