Subaru Crosstrek Service Manual: Installation

EXTERIOR/INTERIOR TRIM > Cowl Panel

INSTALLATION

CAUTION:

Before installing the windshield glass and cowl panel, make sure there are no gravel in the installing area.

1. Install the cowl panel assembly.

CAUTION:

If the cowl panel assembly cannot be installed properly, do not hit or set it forcibly. The claws of the cowl panel or the windshield glass may be damaged.

(1) Hook the claw of the cowl panel on the lower end (1) of the windshield glass.

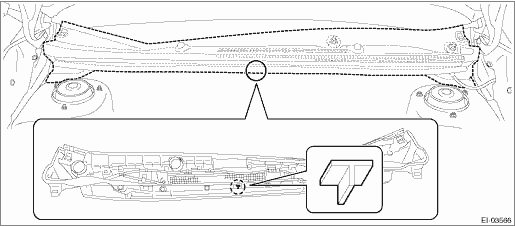

(2) Align the center protrusion of the cowl panel assembly to the cutout portion of the vehicle side, then install the cowl panel assembly.

(3) Attach the clip and connect the washer hose.

2. Install the arm assembly - windshield wiper. Front Wiper Arm > INSTALLATION">

3. Install the remaining parts in the reverse order of removal.

4. If the washer nozzles have been removed from the cowl panel assembly, adjust the washer spray positions. Front Washer Nozzle and Hose > ADJUSTMENT">

Cowl panel
...

Removal
EXTERIOR/INTERIOR TRIM > Cowl PanelREMOVAL1. Open the front hood.2. Remove the arm assembly - windshield wiper. Front Wiper Arm > REMOVAL">3. Remove the cowl panel - side.(1) Remove the ...
