Subaru Crosstrek Service Manual: Installation

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer Clutch

INSTALLATION

1. Install the thrust bearing.

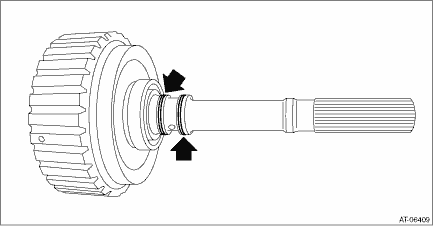

NOTE:

Make sure to install in the right direction.

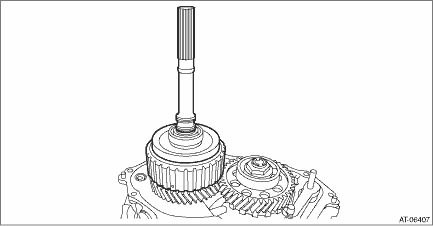

2. Install the transfer clutch assembly.

3. Select the transfer driven gear shim. Transfer Clutch > ADJUSTMENT">

4. Attach the selected transfer driven gear shim to extension case with vaseline.

5. Remove the transfer clutch assembly.

6. Install the seal ring to the transfer clutch assembly.

NOTE:

Use a new seal ring.

When installing the seal ring, do not expand the seal ring too much.

Apply CVTF to the seal rings.

7. Install the seal ring to the transfer driven gear assembly.

NOTE:

Use a new seal ring.

When installing the seal ring, do not expand the seal ring too much.

Apply CVTF to the seal rings.

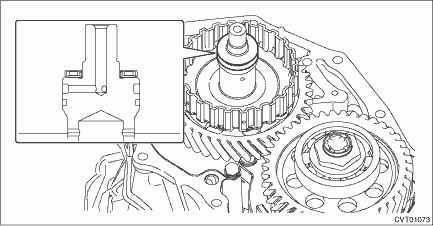

8. Install the transfer clutch assembly.

9. Install the extension case. Extension Case > INSTALLATION">

10. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION">
