Subaru Crosstrek Service Manual: Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Rear Oxygen Sensor

INSPECTION

1. Check that the rear oxygen sensor has no deformation, cracks or other damages.

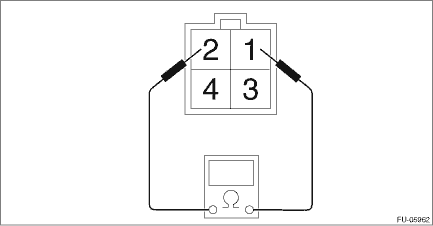

2. Measure the resistance between rear oxygen sensor terminals.

Terminal No.

Standard

1 and 2

5.6+1.7 −0.6 ? (when 20°C (68°F))
