Subaru Crosstrek Service Manual: Engine wiring harness and transmission cord Location
WIRING SYSTEM > Engine Wiring Harness and Transmission Cord

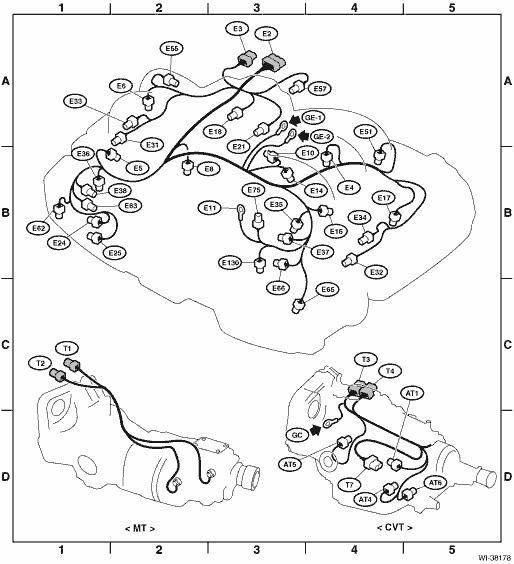

LOCATION
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
E2 | 54 | Black | A-3 | B21 | Bulkhead wiring harness |
E3 | 16 | Brown | A-3 | B22 | |
E4 | 2 | Blue | B-4 | Purge control solenoid valve | |
E5 | 2 | Dark gray | B-2 | Fuel injector No. 1 | |
E6 | 2 | Dark gray | A-2 | Fuel injector No. 3 | |
E8 | 2 | Black | B-2 | Engine coolant temperature sensor | |
E10 | 3 | Black | B-3 | Crankshaft position sensor | |
E11 | 1 | — | B-3 | Oil pressure switch | |
E14 | 2 | Black | B-3 | Knock sensor | |
E16 | 2 | Dark gray | B-4 | Fuel injector No. 2 | |
E17 | 2 | Dark gray | B-4 | Fuel injector No. 4 | |
E18 | 6 | Dark gray | A-3 | EGR control valve | |
E21 | 3 | Black | A-3 | Manifold absolute pressure sensor | |
E24 | 4 | Light gray | B-1 | Front oxygen (A/F) sensor | |
E25 | 4 | Black | B-1 | Rear oxygen sensor | |
E31 | 3 | Black | B-2 | Ignition coil No. 1 | |
E32 | 3 | Black | B-4 | Ignition coil No. 2 | |
E33 | 3 | Black | A-2 | Ignition coil No. 3 | |
E34 | 3 | Black | B-4 | Ignition coil No. 4 | |
E35 | 3 | Light gray | C-3 | Intake camshaft position sensor LH | |
E36 | 3 | Light gray | B-1 | Intake camshaft position sensor RH | |
E37 | 2 | Black | C-3 | Intake oil control solenoid LH | |
E38 | 2 | Black | B-1 | Intake oil control solenoid RH | |
E51 | 5 | Light gray | B-4 | Tumble generator valve actuator LH | |
E55 | 5 | Light gray | A-2 | Tumble generator valve actuator RH | |
E57 | 6 | Black | A-3 | Electronic throttle control | |
E62 | 3 | Light gray | B-1 | Exhaust camshaft position sensor RH | |
E63 | 2 | Black | B-1 | Exhaust oil control solenoid RH | |
E65 | 3 | Light gray | B-3 | Exhaust camshaft position sensor LH | |
E66 | 2 | Black | C-3 | Exhaust oil control solenoid LH | |
E75 | 2 | Black | B-3 | Engine oil temperature sensor | |
E130 | 1 |
| B-3 | Oil level switch | |
| |||||
• MT model
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
T1 | 2 | Gray | C-1 | B24 | Bulkhead wiring harness |
T2 | 2 | Brown | C-1 | B25 | |
| |||||
• CVT model
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
T3 | 16 | Dark gray | D-4 | B12 | Bulkhead wiring harness |
T4 | 12 | Gray | D-4 | B11 | |
T7 | 9 | Black | D-4 | Inhibitor switch | |
AT1 | 3 | Black | D-4 | Primary speed sensor | |
AT4 | 3 | Dark gray | D-5 | Secondary speed sensor | |
AT5 | 3 | Light gray | D-5 | Turbine speed sensor | |
AT6 | 3 | Black | D-4 | Secondary pressure sensor | |
| |||||
