Subaru Crosstrek Owners Manual: Engine compartment overview

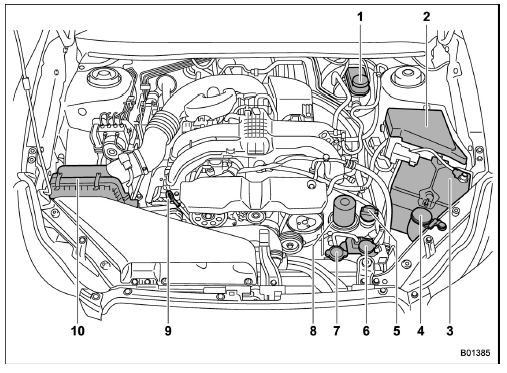

Engine compartment overview

  1. Brake fluid reservoir/Clutch fluid reservoir (MT)
  2. Fuse box
  3. Battery
  4. Windshield washer tank
  5. Engine oil filler cap
  6. Engine coolant reservoir
  7. Radiator cap
  8. Engine oil filter
  9. Engine oil level gauge
  10. Air cleaner case
Engine hood
CAUTION When you open the engine hood, do not stand the wiper blades up. Furthermore, while the hood is open, do not operate the windshield wipers. Doing so could result in damage to t ...

Engine oil
CAUTION If the level gauge cannot be pulled out easily, twist the level gauge right and left, then gently pull it out. Otherwise, you may be injured accidentally straining yourself. Us ...
