Subaru Crosstrek Service Manual: Disassembly

REAR SUSPENSION > Front Lateral Link

DISASSEMBLY

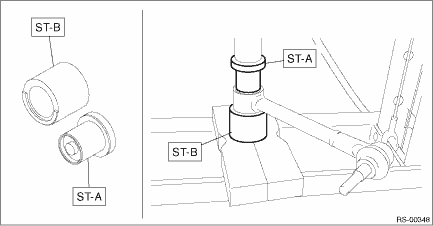

Using the ST, push out the bushing B - lateral link.

Preparation tool:

ST-A & ST-B: INSTALLER & REMOVER (20099AE000)

Removal
REAR SUSPENSION > Front Lateral LinkREMOVAL1. Lift up the vehicle, and then remove the rear wheels.2. Remove the bolts and nuts, and then remove the trailing link.3. Remove the lateral link assembl ...

Installation
REAR SUSPENSION > Front Lateral LinkINSTALLATIONCAUTION:• Be sure to use a new self-locking nut.• Always tighten the bushing in the state where the vehicle is at curb weight and the whe ...
