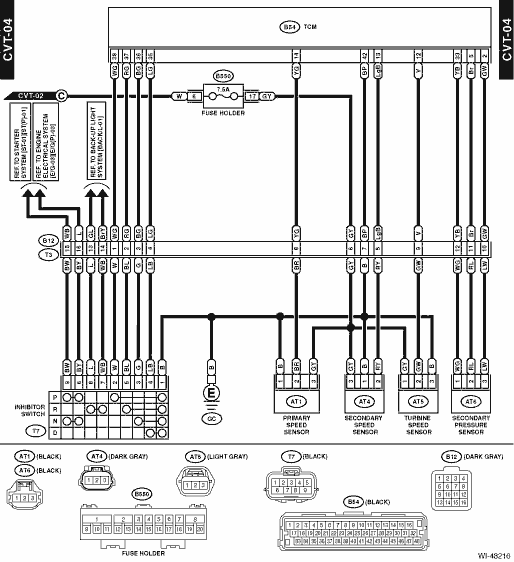

WIRING SYSTEM > CVT Control System

WIRING DIAGRAM

Cruise control system Wiring diagram
WIRING SYSTEM > Cruise Control SystemWIRING DIAGRAM ...

Door cord Location
WIRING SYSTEM > Door CordLOCATIONConnectorConnecting toNo.PoleColorAreaNo.DescriptionD18BlackC-2B30Bulkhead wiring harnessD22C-4 Front door speaker LHD36Dark grayC-4 Front power window motor LHD510 ...
