Subaru Crosstrek Service Manual: Component
POWER ASSISTED SYSTEM (POWER STEERING) > General Description
COMPONENT

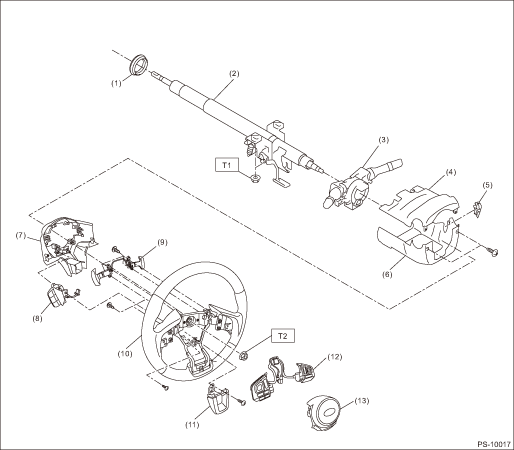

1. STEERING WHEEL AND COLUMN
(1) | Bushing | (7) | Cover - steering wheel LWR | (13) | Airbag module |
(2) | Column ASSY - steering | (8) | MID switch | ||
(3) | Switch ASSY - combination | (9) | Paddle shift | Tightening torque: N·m (kgf-m, ft-lb) | |
(4) | Cover ASSY - column UPR | (10) | Steering wheel | T1: | 20 (2.04, 14.8) |
(5) | Cap - key cylinder (model with keyless access with push button start) | (11) | Cover - spoke | T2: | 39 (3.98, 28.8) |
(6) | Cover ASSY - column LWR | (12) | Satellite switch | ||

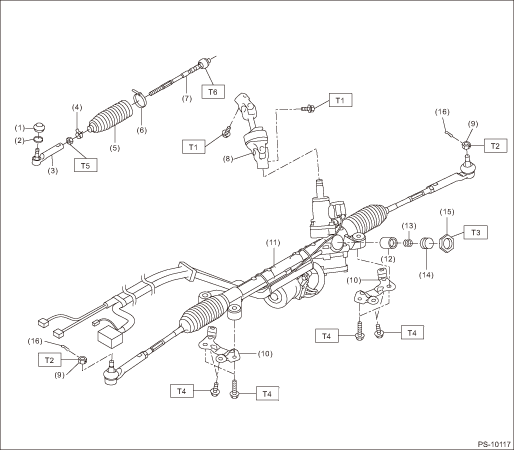

2. STEERING GEARBOX
(1) | Dust seal | (9) | Castle nut | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Clip - boot tie-rod end B | (10) | Stiffener | T1: | 24 (2.45, 17.7) |
(3) | Tie-rod end | (11) | Steering gearbox ASSY | T2: | 27 (2.75, 19.9) |
(4) | Clip - boot tie-rod end A | (12) | Pad - pressure | T3: | 49.4 (5.04, 36.4) |
(5) | Boot - steering gearbox | (13) | Spring - gearbox | T4: | 60 (6.12, 44.3) |
(6) | Band - boot | (14) | Adjusting screw | T5: | 85 (8.67, 62.7) |
(7) | Tie-rod | (15) | Lock nut | T6: | 90 (9.18, 66.4) |
(8) | Universal joint assembly - steering | (16) | Cotter pin | ||

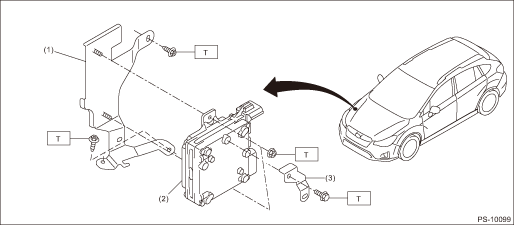

3. ELECTRIC POWER STEERING CONTROL MODULE
(1) | Bracket - control module | (3) | Harness bracket | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Power steering control module | T: | 7.5 (0.76, 5.5) | ||
