EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > Leak Check Valve Assembly

ASSEMBLY

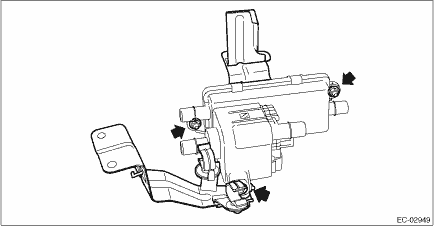

1. Install the bracket to the leak check valve assembly.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

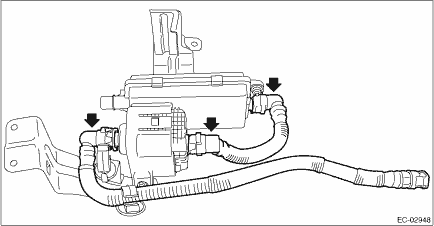

2. Install the drain tube to the leak check valve assembly.

CAUTION:

• Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.

• Make sure that the quick connector is securely connected.

NOTE:

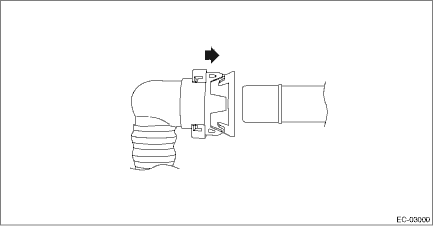

Connect the quick connector as shown in the figure.

3. Install the drain separator to the leak check valve assembly. Drain Separator > INSTALLATION">
