CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Extension Case

ASSEMBLY

1. Press-fit the dust cover into extension case.

2. Install the extension case oil seal to extension case. Differential Side Retainer Oil Seal > REPLACEMENT">

3. Install all plugs.

NOTE:

Use a new O-ring or a gasket.

Apply CVTF to the O-rings.

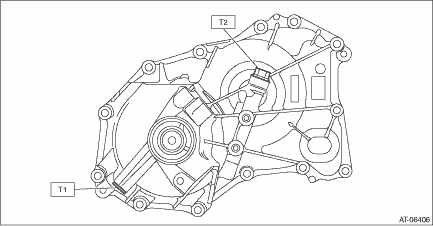

Tightening torque:

T1: 22 N·m (2.2 kgf-m, 16.2 ft-lb)

T2: 35 N·m (3.6 kgf-m, 25.8 ft-lb)

Removal
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Extension CaseREMOVAL1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">2. Remove the extension ...

Disassembly
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Extension CaseDISASSEMBLY1. Remove the dust cover from extension case.2. Remove the extension case oil seal from the extension case. Differential Side R ...
