Subaru Crosstrek Service Manual: Adjustment

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Inhibitor Switch

ADJUSTMENT

1. Shift the select lever to “N” range.

2. Loosen the two bolts holding the inhibitor switch.

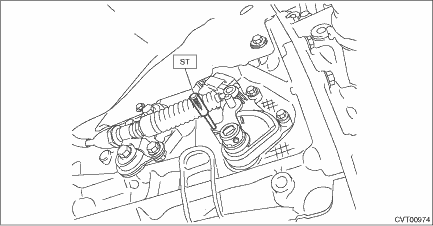

3. Insert the ST vertically into the holes of the shifter arm and switch body.

ST 499267300STOPPER PIN

4. Tighten the two bolts holding the inhibitor switch.

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

5. Repeat the inspection of the inhibitor switch. If the inhibitor switch is determined to be “faulty”, replace it.
