Subaru Crosstrek Service Manual: Vehicle dynamics control system Wiring diagram
WIRING SYSTEM > Vehicle Dynamics Control System
WIRING DIAGRAM

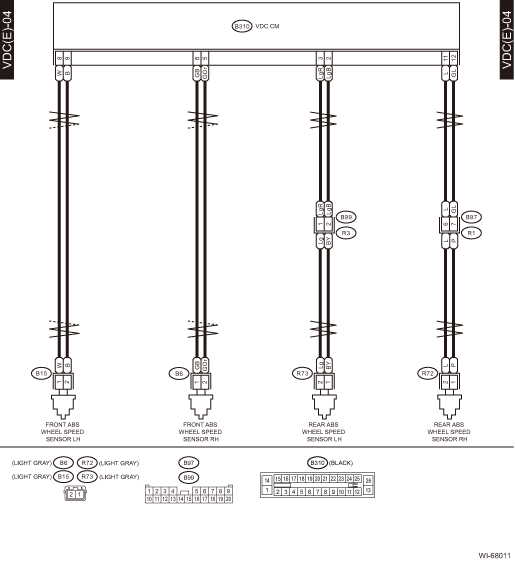

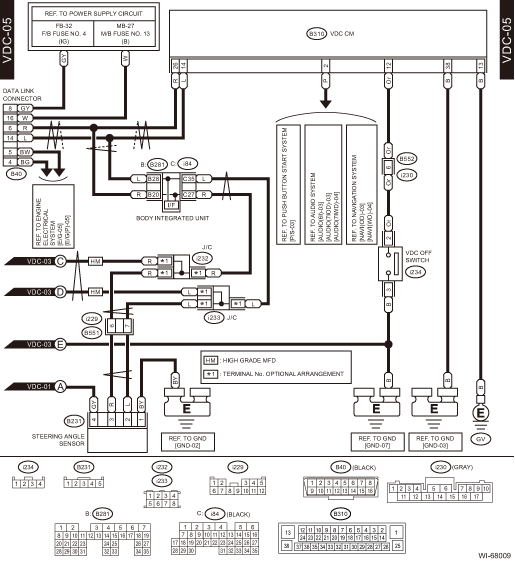

1. WITHOUT EyeSight

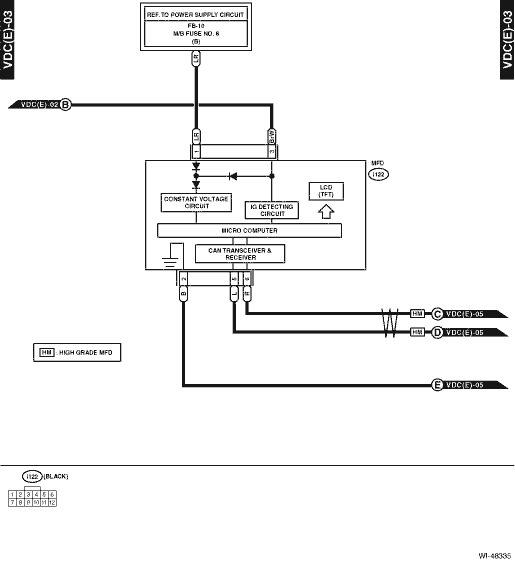

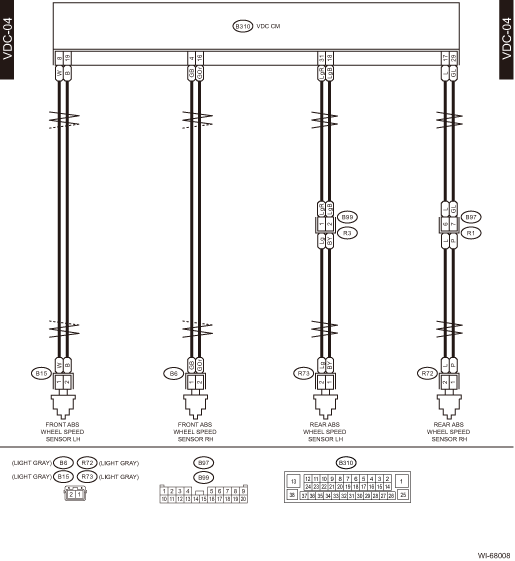

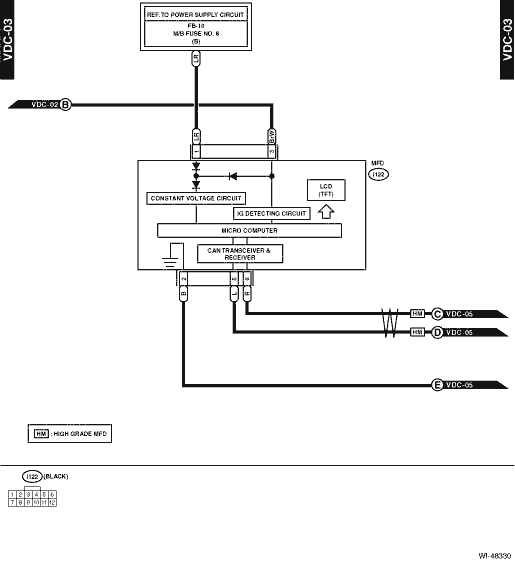

2. WITH EyeSight
